HP330H电脑裁板锯
HP330H电脑裁板锯

HP330H电脑裁板锯

分类:(重型后上料)
高精度、
高效率、
超稳定、大规模批量开料
  • 产品详情
  • 参数视频

独立四立柱同步重型升降台

lndependent four colurmns synchronous heavy duty lifting table

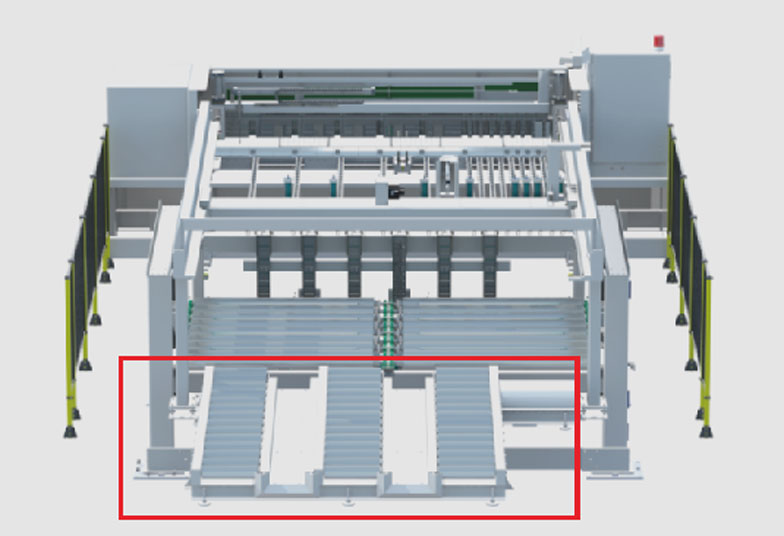

备料辑合(选配)

Roller table for prepared panels(optional)

HP330出后上料带动力输送辑台(选配)

HP330H:Rear loading with powered conveyor roller table(optional)

超重型后上料电子锯

最大锯切厚度可达120mm

气动快速装拆主锯片装置

锯片根据锯切厚度智能控制升降高度

压梁根据锯切厚度智能控制升降高度

锯车伺服电机驱动

主锯电机加大至22KW


Super heavy duty rear loading computer panel saw

Maximum outting thickness up to 120mm

Pneumatic main saw blade ohanging system

The saw blades heght lits inteligenty according to the panels thickness,

The beams height ifts intelligently aocording to the panels thickneee

Servo motor drives the saw carriage

Main saw motor's power is inoreased to



现场操作视频

Operating video


扫码观看


产品参数

设备型号HP330H

上料方式

Feeding method

后上料

/Rear feeding


锯切长度

Max.cutting length

3180mm

锯切宽度

Max.cutting width

3300mm

锯片最大高度

Max.height of blade

100mm智能升降

100mm intelligent lifting

主锯片

Main saw blade

400×4.4/3.2×75×72Tx15/105可选450×4.4/3.2x75XT2T×15/105

槽锯片

Scoring saw blade

160×5.3/3.2×45×24T

锯座前进速度

Forward speed of saw carriage

5-100m/min
锯座回程速度

Backward speed of saw carriage

0-100m/min

机械手前进速度

Forward speed of mechanical grippers

0-100m/min

机械手回程速度

Backward speed of mechanical grippers

0-100m/min

侧压装置

Side pressure device

气动双侧压轮

Pneumatic double side pressure wheels

主锯轴马达功率

Motor power of main saw shaft

22KW

槽锯轴马达功率

Motor power of scoring saw shaft

2.2KW

锯车伺服电机

Saw carriage servo motor

1.8KW

送料轴电机

Feeding shaft motor

1.8KW

侧送料轴电机

Sid feedingshaft motor

-

机械手数量

Mechanical gripper's quantity

10PCS

气浮台高压风机

High pressure blower of airfloating table

2.2KW

后上料平台尺寸

Rear feeding table's dimension

3800x2200x600mm

包装尺寸

Packing size

5400x1420x2200mm

5900x920x1000mm

3800x2050x1000mm

机械占地面积

Floor area

8100x5400x2220mm

Weight

Weight

10500kg

最小板材尺寸

Minimum cutting size

50x30mm

总功率

Total power

39KW

注:本司对产品规格及设计细节不断改良更新,上述功能与参数可能有优化改进,请与授权销售单位确认。

The company's product spelt elirs and design detals wil be updated continously, The above specifications subject to change without notice,plerse confirm wth authorized distributor.
